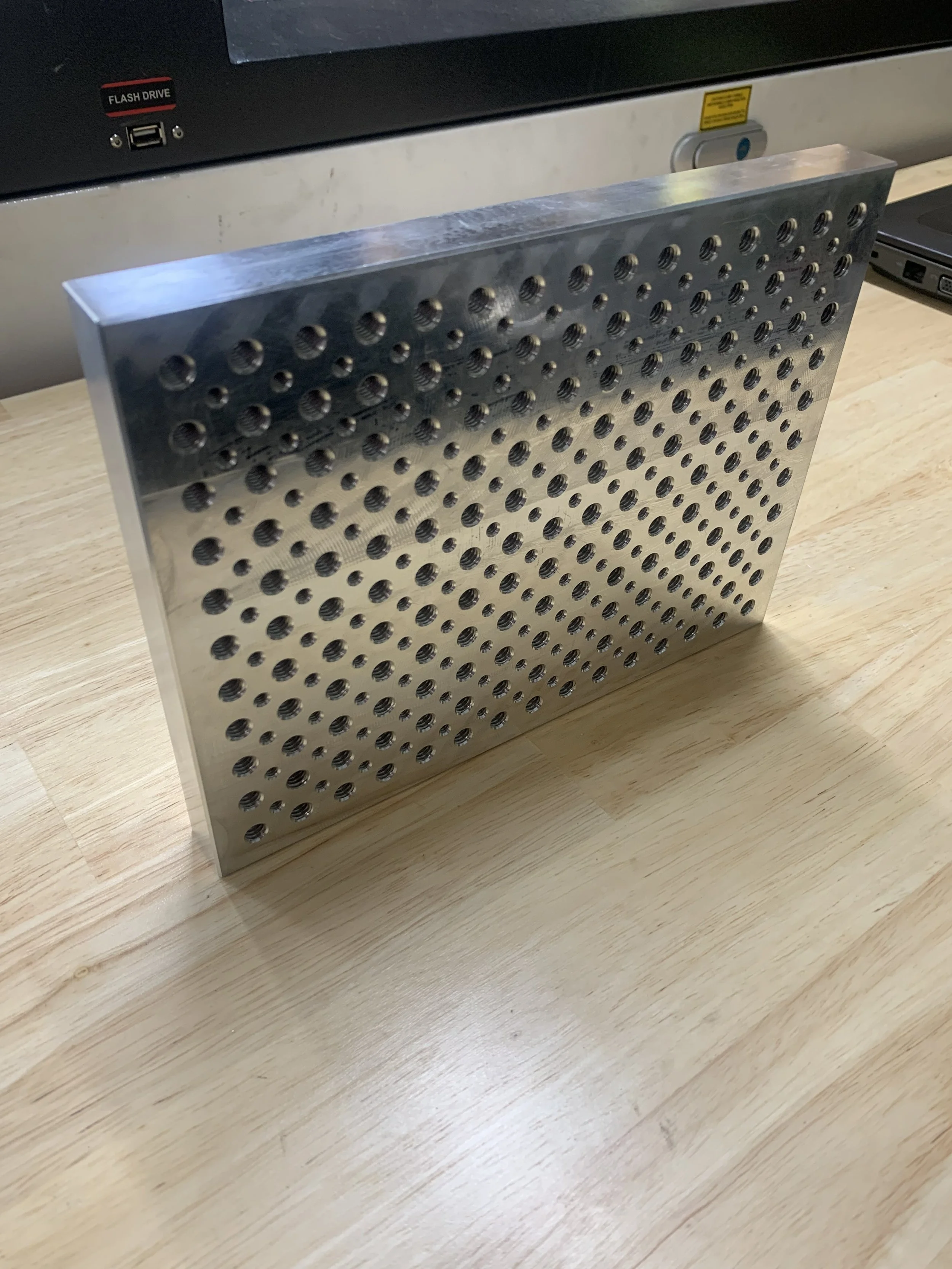

Fixture Plate 6x8 Aluminum
The Fixture plate is 5 7/8inch by 7 7/8inch and 3/4inch thick. There is 1/4-20 holes on 0.5 inch center along with 6-32 threads every 0.5inch offset 0.25inch from the 1/4-20 holes. All threads are form threaded for greater strength and longevity. The aluminum plate will come with one sacrificial acrylic plate so you can make tab parts without damaging the fixture plate.
This Plate was developed to help us manufacture small Microscope and Cryostation parts.
6061 aluminum
